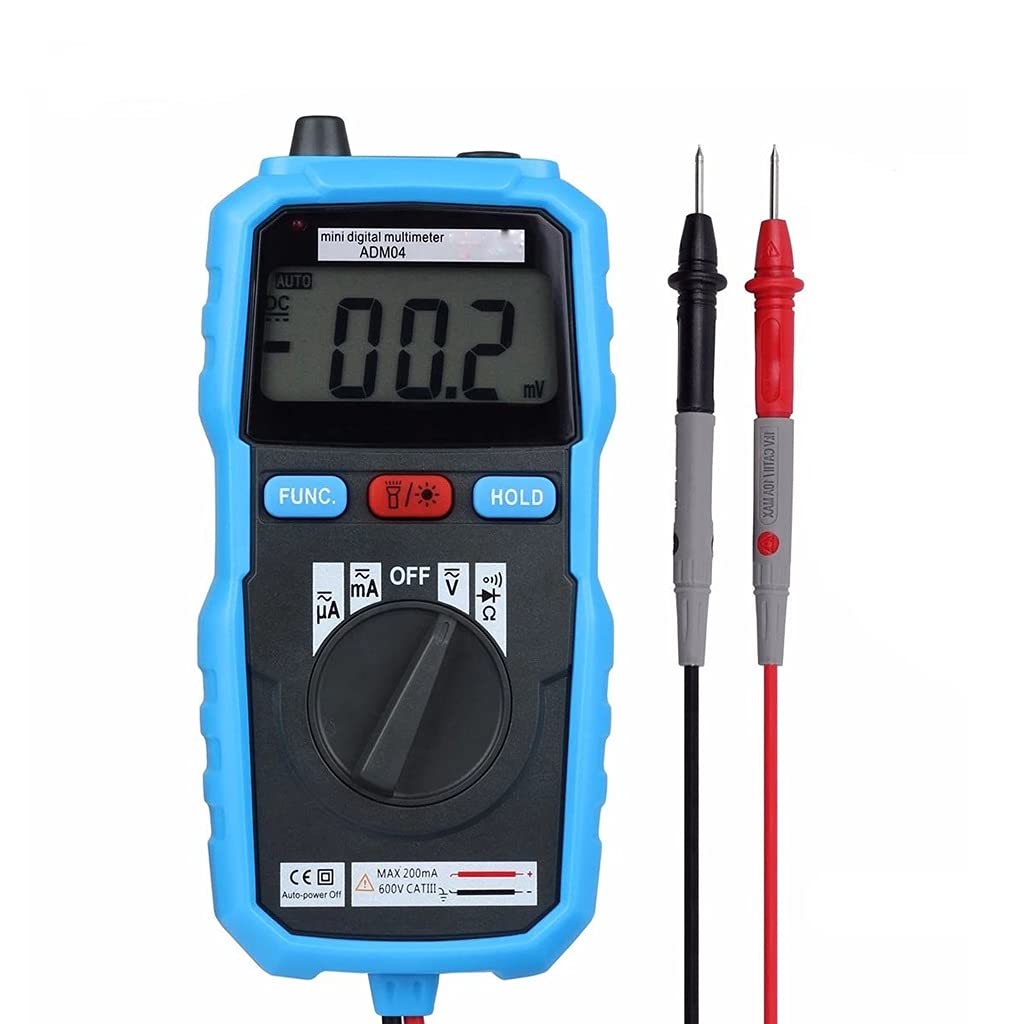

Color: Blue & blackSize: 128x61 x 25mm/5.0" x 2.4" x 1.0"Power Supply: 2 x 1.5V AAA Batteries (NOT included)DC Voltage: 200mV/2V/20V/200V+-(0.5%+3), 600V+-(0.8%+5)AC Voltage: 2V/20V/200V+-(0.8%+3), 600V+-(1.0%+5)DC Current: 200μA/2000μA/20mA/200mA+-(1.8%+5)AC Current: 200μA/2000μA/20mA/200mA+-(2.0%+5)Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ+-(1%+3), 20MΩ+-(1.2%+15)Diode Test range 1V, Resolution 0.001V, Test Current: about 1mA, open circuit voltage: about 2.8V.The display shows the approximate value of diode forward voltage drop.Continuity Check, When the built-in buzzer sounds, the measured resistance less than 50Ω.Features:3 1/2 digital LCD display.Mini pocket auto range digital multimeter, easily to use.Measure DC/AC voltage, DC/AC current, resistance, and diode & continuity check.Data Hold function.With NCV(Non-contact AC voltage detector)function, more safe to use.With backlight and work light, fit for more environment, even in the dark.With case for protections.Low battery indication.Auto power off , more energy save.Package Included:1 x ADM04 Digital Multimeter1 x Test Lead1 x User Manualnotes:Due to different displays and lighting effects, the actual color of the product may be slightly different from the color shown on the picture. Thank you!Due to manual measurement, please allow a measurement deviation of 1-3mm.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Measure DC/AC voltage, DC/AC current, resistance, and diode & continuity check.
Data Hold function.
With NCV(Non-contact AC voltage detector)function, more safe to use.
With backlight and work light, fit for more environment, even in the dark.
Low battery indication.Auto power off , more energy save.
