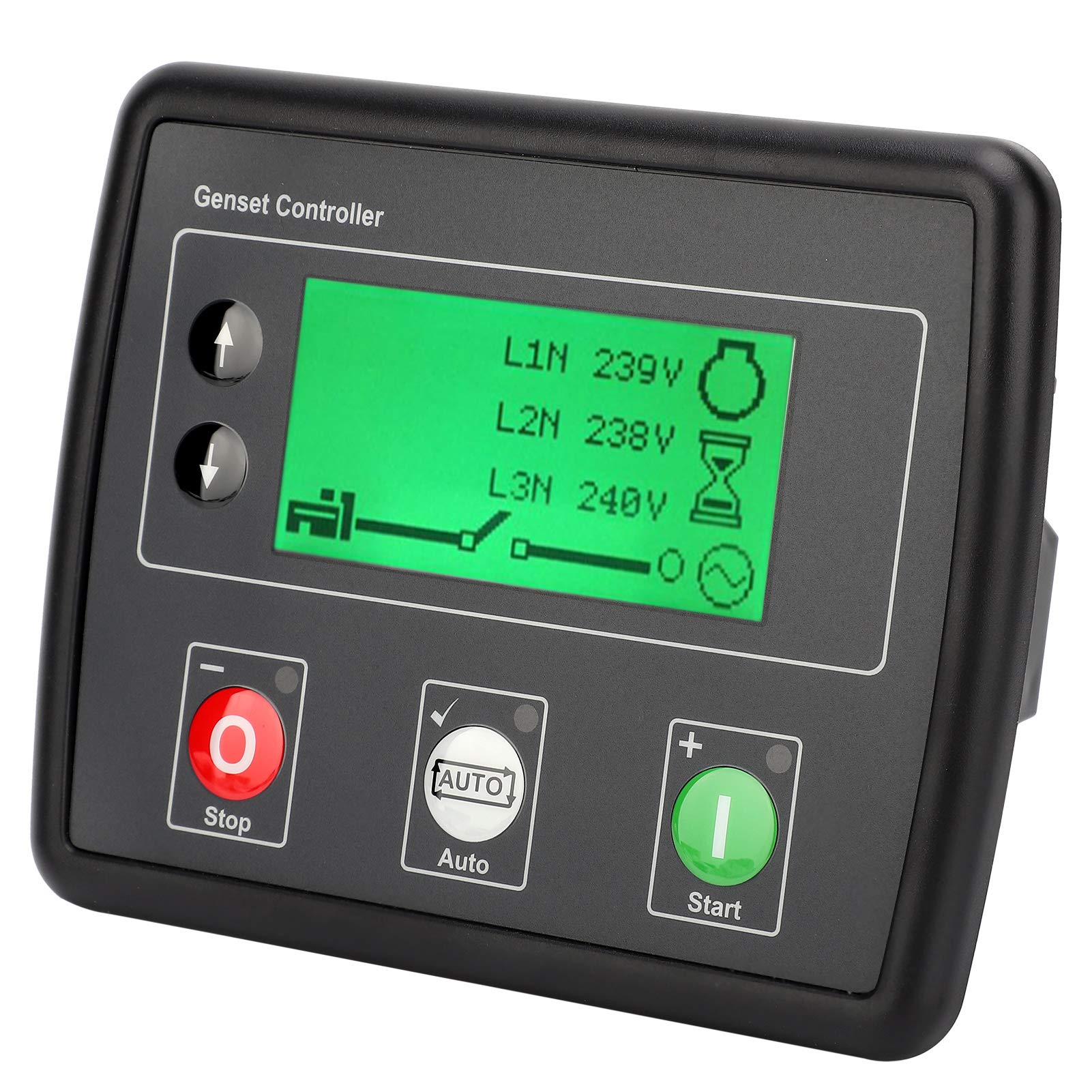

DSE4520 Auto Mains Failure Control Module for Diesel Generators - Self-Starting LCD Protection Board with Alarm Function | Perfect for Backup Power Systems, Emergency Generators & Industrial Applications

Specification: Item Type: Auto Mains Failure Control Module The diesel generator engine controller module automatic start control unit 4520 has the function of an automatic mains (utility) fault control module, which can monitor the incoming mains (utility) power and indicate that the generator set is not available on the mains (utility) time to start. All modules include a series of intelligent control, monitoring and protection functions for standard and electronic engine generator set applications Main Feature: Support 0-10V and 4-20mA oil pressure sensor. Heating display options. Three-phase generator detection. Generator/load current monitoring and protection. Configurable analog/digital input (9). Configurable DC, no voltage and graded load output (6). CAN, MPU and alternator speed sensing (according to the motivation type selection). For Tier 4ECO engine support includes exhaust fluid and filters. Configurable event log (100). For DSE Configuration Suite PC software. Fuel and start output (configurable on CAN). J1939-75 meter output can be configured with CAN meter and alarm. Start with low battery. Enhanced alarm function. Low load alarm. Size: Approx. 113 x 140mm / 4.4 x 5.5in 43 x 34mm / 1.7 x 1.3in Package List: 1 x Host 4 x Installation Buckle 1 x User Manual
